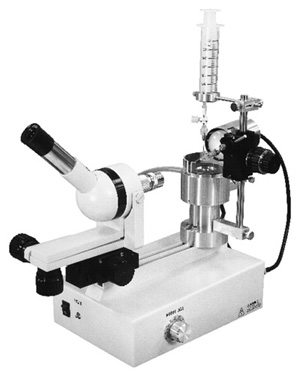

日本成茂磨針器 EG-400
Incorporates a microscope to confirm needle contact with grinding plane.
A microscope is incorporated in this grinder, which uses a special motor to minimize irregular movements of the grinding plane: confirmation of contact between the needle and the grinding plane enables grinding to be performed with greater precision. In addition, this model provides stable performance at all revolution speeds - from low for more precision to high for faster grinding. An easily operable coarse and fine movement coaxial manipulator is equipped for vertical operation of the microneedle, which also enables very precise grinding. A protractor is mounted on the needle holder fixing section, making it easy to set the required grinding angle, and an adaptor is attached for vertical grinding. New water dripping and drainage mechanisms are installed to prevent clogging or accumulation of shavings, making the apparatus as a whole much easier to use.
Specification:
| Accessories included |
Adaptor for Vertical Grinding |
| Diamond Wheel Cleaner |
| Dedicated Pipette Holder |
| Allen Wrench |
| Spare Lamp |
| AC Power Cord |
| Movement range |
Pipette manipulator approx. 47mm |
| Microscope: X approx.7mm, Y30mm, Z approx.8mm |
| Magnifications |
30x (eyepiece 10x, objective lens 3x) |
| Glass capillary |
1mm - 1.5mm |
| Power Source |
AC100 (±5%), 50/60Hz |
| AC120 (±5%), 50/60Hz |
| AC220 (±5%), 50/60Hz |
| AC240 (±5%), 50/60Hz |
| Power consumption |
Approx. 50W |
| Motor speed |
Approx. 50 - 2,000rpm |
| Dimensions/Weight |
W250 × D450 × H400mm, 6.6kg |
Consumables:
| Model |
Product |
| MF-900L3 |
Lamp |
|
